- Sites page with Access Plan, Pricing Plan and Waitlist for each site
- Deeper Dashboard insights: revenue breakdown, peak-hour charging, GHG savings, load profile and how sessions are started
- Charger details page with transactions, revenue and energy for any date range
- An Energy vs Duration chart for every transaction
- New reports and report help: Roaming Transactions and a built-in Report Overview
- More user roles, invites to several sites at once, and access by email domain
- The Integrations Marketplace to connect SWTCH with the other tools your property uses
Getting startedDashboardChargersTransactionsSites, access & pricingReportsUsers & driver accessIntegrations MarketplaceSupport & learning
Start hereGetting started
How do I get access to SWTCH Portal?
Portal access is set up for your site once your chargers are activated. You'll get an email invite from SWTCH (or from an admin at your company). Go to admin.swtchenergy.com, click Create an account using the same email the invite was sent to, and enter the verification code we email you. If you already have a SWTCH account with that email, just log in.
Didn't get the code? Check your spam or junk folder and make sure you are using the exact email the invite went to. Still stuck? Email support@swtchenergy.com and we'll check the invite for you.
I can't log in. What should I check?
- If you created your SWTCH account with Google or Apple, use that same button to log in. Password resets for those accounts are done with Google or Apple.
- Use Forgot password to reset it. New passwords need at least 10 characters with a capital letter, a number and a symbol.
- If you recently changed your email, log in with the email that is on your SWTCH account.
- If your access or role was just updated, log out and back in so the change takes effect.
More help: Account Access, Login, and User Management.
Portal tabDashboard
The Dashboard has two parts: a live Station Overview at the top, and an Operation Overview for any date range you pick. Use the Site, Location and Account filters to focus on one property.
What does each Station Overview card mean?
| Card | What it tells you |
|---|---|
| Connector Availability | How many connectors are available right now out of the connectors that are online, split by Level 2 and DC Fast. |
| Connectors Plugged In | How many connectors have a vehicle plugged in right now. |
| Active Users | Drivers with a session in progress. Charging means energy is flowing. Idle means the session is still open but the vehicle isn't actively charging (for example, it's full but still plugged in). |
| Connector in Service | How many connectors are active out of all your connectors, plus how many are in Troubleshooting or Under Repair. |
| Stations | Online vs. offline connectors, and how many are charging right now. |
| Current | The total current (amps) your chargers are drawing right now compared to their maximum. Helpful if your site uses load management. |
What's in the Operation Overview?
Pick a date range (Today, Past 7 Days, Last Month, This Year, a custom range and more), click SEARCH, then switch the chart between TRANSACTION, REVENUE and ENERGY. Below the chart you'll find:
- Transactions: the total, plus how many started after 6 PM and how many on weekdays.
- Revenue: split by charging, loitering, guest fees and flat fees (shown per currency if you have sites in both Canada and the US).
- Energy: total kWh and how much charging happened during peak hours.
- GHG Savings: estimated greenhouse gas savings in kg CO₂ eq.
What are Utilization and Consumption Insights?
- Utilization Insights: when sessions happen during the day (all days, weekdays or weekends), plus the average charging time vs. the average time vehicles stay plugged in. Filter by Level 2 or DC Fast.
- Consumption Insights: your average daily load profile (kW by hour), average users and transactions per day, average kWh per session and average driver spend per session.
What does "Station Activation" show?
How drivers start their sessions: the SWTCH mobile app, the web app, an RFID card, tap (NFC), SMS, a payment terminal (POS), Plug and Play / Plug and Charge, roaming partner apps and fleet cards like WEX. It's a quick way to see which options your drivers actually use.
How do I download a chart?
Click the green download icon (a downward arrow in a circle) on the chart you want.
Portal tabChargers
The Chargers tab lists every charger on your sites. Filter by site, charger ID, serial number, make, Service Status or Charging Status, then click the search button.
What information does each charger show?
- Charger ID: the ID on the front of the charger that drivers enter in the app. Under it you'll see the connector, connector type (for example J1772) and OCPP version.
- Serial Number, Firmware Version, Make and Model, including the charger's power (for example Level 2, 6.6 kW).
- Pricing Plan: the rate, any flat fee and the loitering rule.
- Access: Restricted or Unrestricted, the schedule, and the access code if one is set.
- Service Status and Charging Status (see the tables below), plus when the status last changed.
- A connection icon (red when the charger is offline) and a map icon showing whether the charger is visible on the public map.
Can I see more detail for one charger?
Yes. Click MORE > View Charger Details. You'll get the charger's current status plus its transactions, revenue and energy for any date range, a chart over time, and its hardware and connector details. View Charger In App opens the same listing your drivers see.
Can I change the pricing on my chargers?
Yes. Pricing now lives in pricing plans, and a plan can cover several chargers. Click MORE > Edit Pricing for ALL Chargers in Plan, or go to Sites > your site > Pricing Plan. Any change applies to every charger in that plan. See pricing plans below for what you can set.
What do the "Service Statuses" mean?
| Status | What it means |
|---|---|
| Active | The charger is live and ready for public or authorized drivers. |
| Activating - Pending Property | Activation is waiting on a step from the property. |
| Activating - Pending Driver Subscription | For private chargers where the driver needs to subscribe before using it. |
| Awaiting Commissioning | Setup with SWTCH Deployment isn't finished yet. |
| Commissioned | Setup is done and the charger is connected to the SWTCH network, but it isn't live for drivers yet. |
| Testing | The charger is being tested and isn't open for regular use. |
| Troubleshooting | Our team is working on an issue with this charger. |
| Under Repair | The charger has an issue that needs a repair and isn't available to drivers. |
| On Hold | The charger is paused while we wait on something, usually a step on site. |
| Decommissioned | The charger has been removed from service. |
| Terminated | An older status that's no longer used. If you still see it on a charger, contact support. |
| Other | An older status that's no longer used. If you still see it on a charger, contact support. |
What do the "Charging Statuses" mean?
| Status | What it means |
|---|---|
| Available | Ready for a new session. |
| Preparing | A vehicle is plugged in and the session is about to start. |
| Charging | The session is active and energy is being delivered. |
| SuspendedEV | The vehicle paused charging (often because it's full or on its own schedule). |
| SuspendedEVSE | The charger paused power delivery (for example, load management). |
| Finishing | The session ended and the vehicle is still plugged in. |
| Faulted | The charger reported a fault. Many clear on their own after the next session or a reboot. |
| Unavailable | The charger isn't accepting new sessions right now. |
An offline charger shows a red connection icon in the list. Our support team monitors your chargers 24/7, and for offline steps you can try yourself, see Offline Chargers and Site-Wide Outages.
Portal tabTransactions
Every charging session at your sites. The cards at the top give you totals for the selected period: Transactions (with errored and total counts), Energy, Revenue and Unique Users (how many different drivers charged).
What do the columns mean?
| Column | What it shows |
|---|---|
| ID | The unique ID of the charging session. Share it with support if you have a question about a session. |
| User | The driver and how they started the session (Mobile, Web, RFID and so on). |
| Site / Charger ID | Where the session happened. |
| Connected/Disconnected | When the vehicle was plugged in and unplugged, with the time zone. |
| Charging Duration | How long energy was actually delivered. Click it to open the Energy vs Duration chart. |
| Transaction | The energy delivered (kWh) and the session state. |
| Total / Payment | What the driver paid, in which currency, and where the payment is (for example, Settled). |
Can I see how a session charged over time?
Yes. Click the underlined Charging Duration on any session to open its Energy vs Duration chart. It also shows the total time connected vs. the time actually charging, which is great for spotting vehicles that stayed plugged in long after they were full.
What do the transaction states mean?
| State | What it means |
|---|---|
| Initiating | The session request was just received. |
| Verified | The driver and payment were verified and the session is about to start. |
| Starting | The charger is starting the session. |
| In Progress | The session is active. |
| Pending Unplug | Charging is done but the vehicle is still plugged in. |
| Completed | The session finished successfully. |
| Failed Initiation | The session couldn't be started. |
| Failed Charging | The session started but ended with an error. |
Can I narrow the list down?
Use the date presets, site, charger ID, driver email or transaction ID. Click FILTER for more options: start method, transaction state, payment state, serial number and user name.
Portal tabSites, access & pricing
The Sites tab lists your properties with their status and chargers. Click a site to open its settings, including Access Plan, Pricing Plan, Waitlist, Chargers and Activity Tracking (a history of changes made to the site).
What is an access plan?
An access plan controls who can charge and when. Each plan covers one or more chargers and has:
- Access type: Unrestricted (anyone with a SWTCH account) or Restricted.
- For restricted plans, who gets in: Drivers you've assigned on the Users page, anyone with an Access Code, and/or anyone whose SWTCH account uses your Email Domain (for example, everyone with an @yourcompany.com email).
- A Schedule: 24/7, Weekday/Weekend, or Custom Days.
The Access Plan tab also shows Chargers Not Linked to Any Access Plans, so you can spot chargers that still need one.
Want to set up or change an access plan? Email customer.success@swtchenergy.com and we'll help you pick the right setup.
What can I set in a pricing plan?
- Rate: per Hour or per kWh. For hourly rates, Curtailment Adjustment prorates the rate based on the power actually delivered.
- Time of Day pricing, if you want different rates at different times.
- Loitering: none, Time based (for example, after a number of hours connected) or Status based (after the vehicle has been idle for a set time once charging stops). Drivers get a reminder before a loitering fee applies.
- Flat Fee: a fixed amount added to each session, and a Payment Limit: the most a single session can cost.
Discount plans (for example, a lower rate for residents or staff) are set up by our team. Email customer.success@swtchenergy.com to add or change one. More detail: Managing Pricing and Billing Rules.
What is the Waitlist?
When all chargers are busy, a waitlist lets drivers queue for the next one. Drivers are notified when it's their turn, and you can see who is in line under Active Waitlist. Settings include a grace period to plug in, how many times a driver can snooze, and a daily reset time.
Interested in a waitlist for your site? Let us know at customer.success@swtchenergy.com.
Portal tabReports
Choose a date range and site, click search, then pick a report tab. Not sure which one you need? Click the ? at the top right for the Report Overview.
| Report | What's in it |
|---|---|
| Financial Summary Report | All successful sessions with what drivers paid, the fees collected by SWTCH and the remittance payable to your property, on a quarterly basis. |
| Utility Charge Session Report | Every session with session details, energy used and charger information. |
| Utility Interval Report | Commonly requested by utility programs. Breaks sessions into 15-minute intervals with energy and power data. |
| Site Report | Each charger's activation date, current and previous operational status, and charger details. |
| Charger Utilization | How much each charger was used: the time it had a vehicle plugged in vs. the total time in the period. |
| Uptime Report | How much of the time your chargers were online, available or charging. Downtime caused by events outside SWTCH's control is excluded. |
| Roaming Transactions New | Sessions started from third-party (roaming) apps. Roaming payments that haven't settled yet are left out of that period's Financial Summary remittance, so they show here instead. That's not missing revenue or a failed payment. |

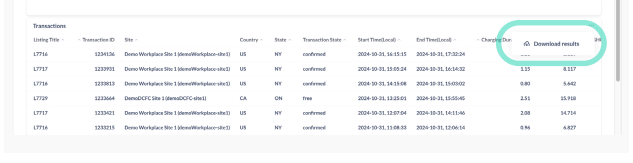

How do I download a report?
- Set the date range and site, then click the search button.
- Open the report tab you need.
- Click the ... at the top right of the table and choose Download results, or click the cloud icon to Download as PDF.
Reports are available to users with Manager access to the site. If you can't see the Reports tab, ask the Manager at your company or email customer.success@swtchenergy.com.
Portal tabUsers & driver access
How do I see who has access to my site?
Go to Users, filter by your site and click search. You'll see each user's email, name, sign-up date, how they log in (email and password, Google or Apple), their last session, the access plan they're on and their role. The Invited Users tab shows invites that were sent, who sent them and for which sites.
What roles are there?
- Driver: can charge at your restricted chargers based on the access plan (and discount plan, if any) you assign.
- SWTCH Portal User: can log in to the Portal for the sites you choose, with one of these roles: Manager, Operator, Viewer, Charger Viewer or Dashboard Viewer. Manager has the most access, including reports.
Not sure which role fits someone? Email customer.success@swtchenergy.com before you send the invite and we'll help.
How do I invite a driver or a Portal user?
- Go to Users > Invited Users and click + INVITE USER.
- Enter their email.
- Choose the role: Driver or SWTCH Portal User.
- Pick the site. For a driver, choose their Driver Access Plan and, if needed, a Discount Plan. For a Portal user, choose their role.
- Need more than one site? Click + ADD PERMISSIONS to add another.
- Click SEND INVITATION.
The person gets an email to accept the invite. Drivers need a SWTCH account with that same email, and once they accept they can charge at your restricted chargers (and get any discount you assigned).
How do visitors or guests charge at a private charger?
The guest creates their own SWTCH account (and adds a payment method if your pricing requires one). Then either share the plan's access code with them, or invite their email as a Driver on the right access plan. They should never use a resident's account.
Can I give access to everyone at my company or school?
Yes. A restricted access plan can use an Email Domain, so anyone who signs up for SWTCH with that domain (for example, @someschool.edu) can charge without an individual invite. Email customer.success@swtchenergy.com to set it up.
How do I change the main contact or owner of a charger?
Email support@swtchenergy.com with the new owner's name and the email on their SWTCH account. We'll confirm with you and update it. Other drivers' access and billing aren't affected.
What about RFID cards?
RFID cards let drivers start a session by tapping the card on the charger. Lost a card? See How to report a lost RFID card.
Portal tabIntegrations Marketplace
What is the Integrations Marketplace?
It's a directory of partners certified to work with SWTCH, like resident apps, parking, car sharing, energy management, utilities and fleet tools. Filter by category or property type, click LEARN MORE for details, or click REQUEST and our team will reach out to set it up. If you manage several sites, you can tell us which ones the integration is for. Don't see a tool you use? Click HELP US GROW to suggest it.
You can also browse the public directory at swtchenergy.com/integrations.
We're here to helpSupport & learning
Who keeps an eye on my chargers?
Our support team monitors your chargers 24 hours a day, 7 days a week, 365 days a year. When a charger has an issue, we follow three steps:
- Remote troubleshooting: we try to fix it from our side first.
- On-site help: if that doesn't work, we reach out to your on-site contact for a quick check (like a breaker or network reset).
- Technical visit: if a technician is needed, we'll let you know first if there's a cost.
Will the Portal send me alerts?
Not today. The Portal doesn't send charger alerts, but our team is watching your chargers and will reach out if we need your help on site. Keep your on-site contact details current so we can reach the right person.
How do I learn more about SWTCH Portal?
The fastest way is to watch the SWTCH Portal training walkthrough. You can also check our blog post on setting (and hitting) your EV charging goals for ideas on which numbers to track, and the SWTCH Portal Customer - General FAQ for onboarding questions. For a personal walkthrough or advice on your pricing and access strategy, email customer.success@swtchenergy.com.
I have an idea for the Portal. Where do I send it?
We'd love to hear it. Send it to customer.success@swtchenergy.com. Every request is reviewed, though not every idea can be built right away.
