Using Tesla Adapters

     Tesla vehicles have their proprietary charging port design, which is unique compared to most other electric vehicles (EVs). However, with the help of Tesla adapters, Tesla owners can conveniently charge their cars using non-Tesla chargers. Here’s a detailed guide on how to use a Tesla adapter with non-Tesla EV chargers.

1. Identify the Type of Charging Station

     Before using a Tesla adapter, determine the type of charging station available. Non-Tesla EV chargers come in different types based on their charging speed and connector design.

- Level 2 Chargers (240V): Found at public locations, home charging units, and destinations like hotels or malls. These use a J1772 connector.

- DC Fast Chargers: High-speed charging stations like CHAdeMO or CCS. These are usually available at public charging spots.

2: Choose the Appropriate Tesla Adapter

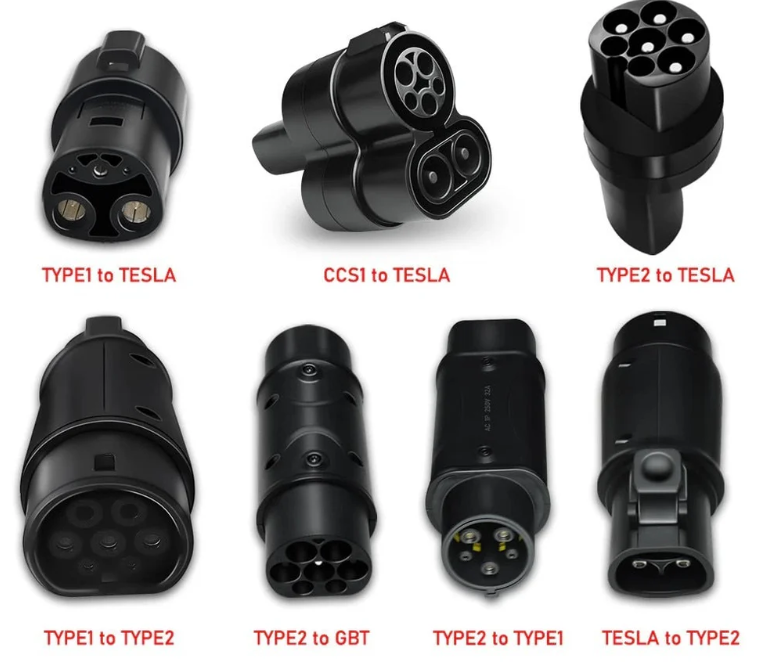

    Tesla offers several adapters, each designed to connect to different types of non-Tesla EV charging stations. The most common adapters are:

- J1772 Adapter: Allows Tesla vehicles to charge at Level 2 stations using J1772 connectors.

- CHAdeMO Adapter: For fast charging at CHAdeMO stations, typically found at DC fast charging points.

- CCS Adapter: Tesla recently introduced a CCS adapter that allows access to stations with the Combined Charging System (CCS).

3: Connect the Adapter to the Charger

    Once you have the right adapter, follow these steps to attach it to the charger:

- For J1772 Chargers:

•  Insert the J1772 adapter into the charging handle of the non-Tesla charger.
  Once securely attached, plug the other end (Tesla side) into your Tesla vehicle's charging port.
  For CHAdeMO Chargers:
•  Attach the CHAdeMO adapter to the charger’s connector.
  Once connected, insert the adapter into your Tesla charging port. (Ensure it’s properly latched before beginning to charge.)
• For CCS Chargers:
  Plug the CCS adapter into the charging station’s connector.
  Insert the Tesla-compatible end into your vehicle’s charging port.

4: Begin Charging

    Once the adapter is connected:

•  Activate the Charger: Most public EV chargers require payment or activation via a mobile app, RFID card, or credit card. Follow the instructions on the charging station to start the charging process.
• Monitor Charging: Once the session begins, you can monitor the charging status from the Tesla’s dashboard, mobile app, or the charging station’s display

Important Notes:

Check Compatibility: Not all Tesla adapters are available for every market, and some fast chargers may not support Tesla vehicles, even with an adapter. Always check charger compatibility before heading out.

Charging Speed: Charging speeds may vary when using a non-Tesla charger with an adapter. For instance, CHAdeMO fast chargers may not deliver speeds comparable to Tesla’s Supercharger network.

Adapter Availability: Ensure you have the adapter before arriving at a station. Tesla adapters can be purchased from Tesla’s official store or other reputable online retailers.
